Product Features

Drive wheel info

Available wheel sizes 22, 24, 26

150 kg maximum user weight, maximum total system weight 190 kg

Electronics and battery integrated in the wheel hub

7.8 kg per wheel (standard version 24)

Brushed stainless steel push rim

E-motion increases the wheelchair width by approx. 2 4 cm, depending on the mode

ECS remote control (Ergonomic Control System) - optional

Switching the e-motion wheels on and off from a seated position

Handy, ergonomic design

The buttons are easy to operate even with little force

Clearly arranged, easy-to-read LCD display

Reliable battery indication in 20% steps

Selection of two individually programmable assistance levels for indoors and outdoors

Additional learning mode for beginners

Rollback delay: The drive wheels of the e-motion delay the wheelchair from rolling back on slopes and hold the position for 5 seconds to enable relaxed repositioning of the hands

Automatic battery charger

Magnetic contacting of the charging plug with the charging socket on the e-motion wheels

Charges both e-motion wheels at the same time

Automatic adaptation to the mains voltage (100 240 V)

Removable power cable

Electronic charging and switch-off mechanism

Charge status is indicated by the LEDs on the e-motion wheel and on the battery charger

Battery charging time approx. 6 hours

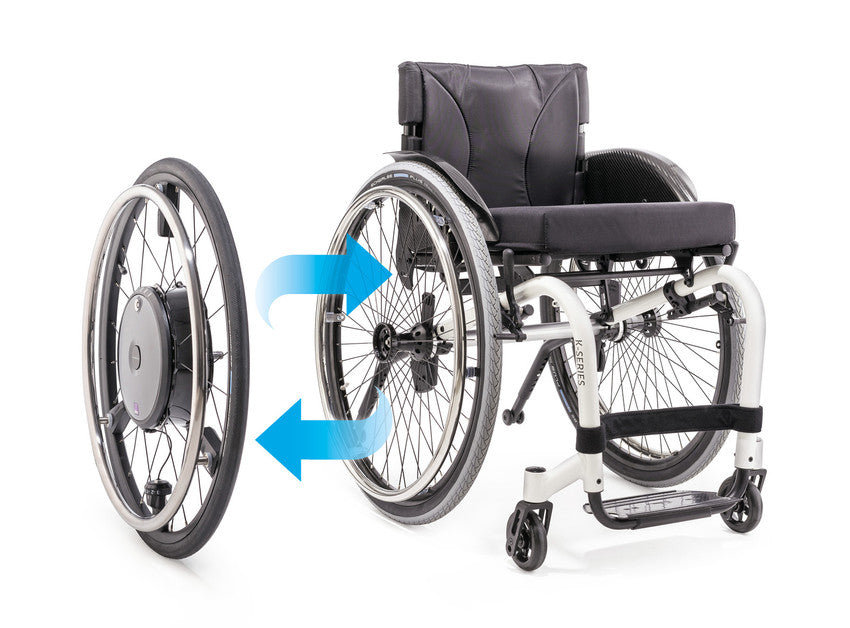

Bracket

Just one small bracket on both sides of the wheelchair

Fits virtually all common wheelchair models

Wheel can be attached in any position

In most cases the manual wheels can still be used

Anti tippers with swiveling and jack up function:

Removable via quick-release device

With jack-up function for easy removal of the wheels

With automatic swiveling function for crossing curbs and thresholds

Adjustable height and length

Anti-tippers must be mounted in pairs

Additional accessories are available such as push rims, alternative tyres etc.

Alber E-Motion

Alber E-Motion

Regular price $0.00
Sale price $0.00 Regular price
Unit price

NEW E-motion M25 the push rim activated add-on that takes the strain off! This is the latest model of the incredible E-Motion wheelchair power add on system from Alber and significantly lighter than the previous models. The e-motion combines active mobility with therapeutic benefit. Even wheelchair drivers with limited arm and body strength can gain back their mobility with e-motion. The electric motors that are integrated in the wheel hubs effectively support the wheelchair user which has to put in much less effort to travel greater distances or slopes. The concept of the e-motion is ingeniously simple While moving, sensors built into the push rims measure your drive movement and provide you with the desired motor power. E-motion drive wheels are compatible with most wheelchairs using two discrete adapters. This allows you to move, steer and brake your wheelchair with very little effort. With a weight of only 7.8 kg per drive wheel, the e-motion is one of the lightest active add-on drives availableMastering everyday life often requires considerably more physical effort for wheelchair drivers. This effort sometimes becomes almost unsustainable with progressing age or illness. The Alber E-Motion M25 electric add-on drive is the ideal solution to master this challenge. Every pulse on the push rim is registered by a highly sensitive sensor and translated into the perfect amount of electric power assistance. As a result propelling a manual wheelchair becomes much easier. The e-motion M25 drive wheel is easily attached and the battery pack is integrated into the wheel hub.

Specifications
Resources
AT Application FAQs

Resources

Service/Maintenance: Astris PME advise that a service/maintenance check takes place every six months to ensure that the equipment maintains optimal working condition. This is an approximate annual cost of $690.00 (excluding GST). This includes technician callout and one (1) hour of labour per service.

**Please note if spare parts are required, these are an additional cost**
