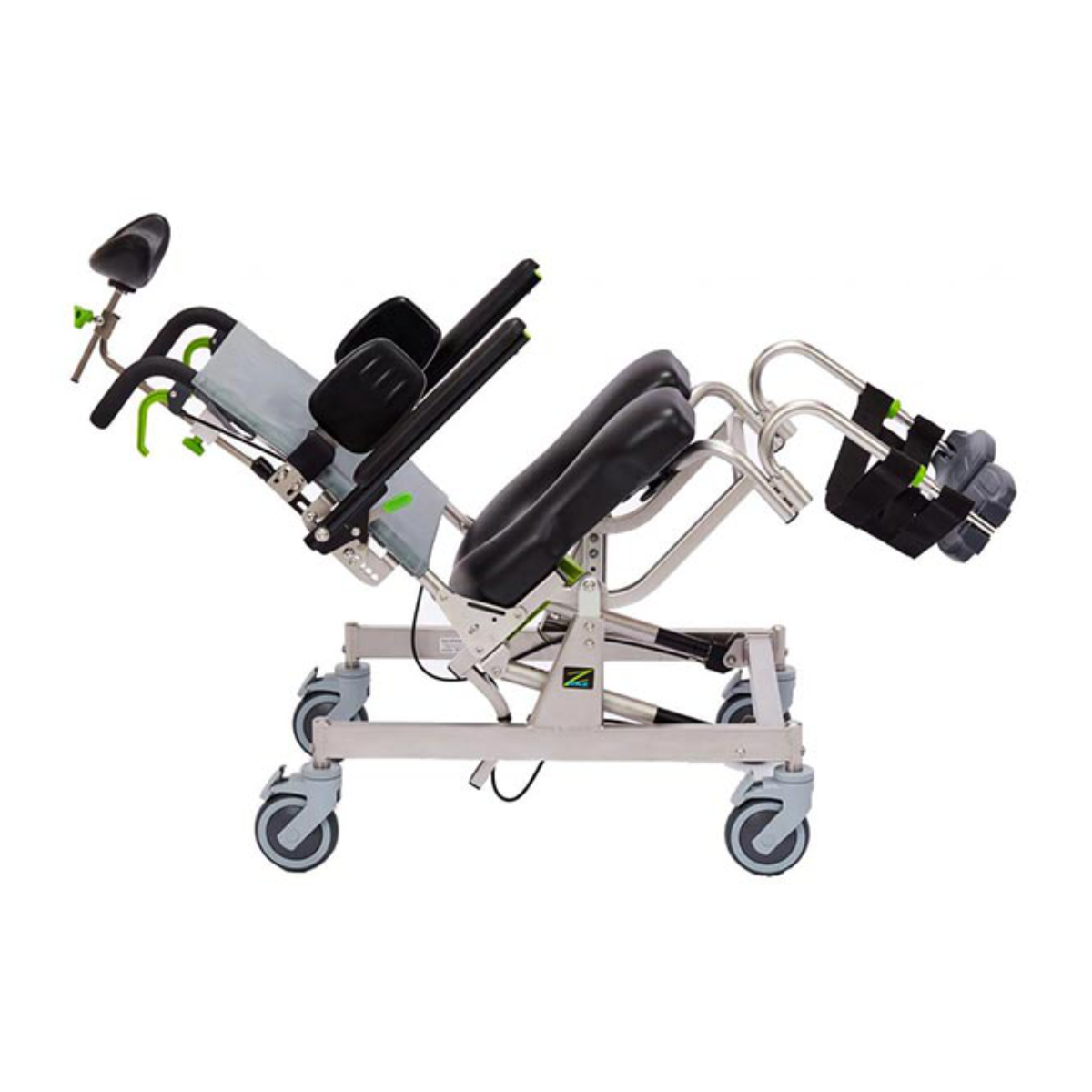

Tilt function Seat frame tilts for extra pressure reduction and comfort, and locking pneumatic springs provide infinite adjustment up to 25 degrees. Pressurized springs also help lift seat frame to an upright position, and the conveniently located tilt triggers provide smooth tilt control
Moulded seats Contoured for pressure reduction and pelvic stability, crafted with soft integral-skin foam for comfort and durability. Available with an open front for access, and in 2 sizes (w d): 23 18 and 26 18.
Ischial pelvic alignment system Provides 2 of fore/aft adjustment so the seat can be aligned with the pelvis, and allows centering of the aperture (opening) around the users ITs. Seat locks in place for transfers and removes easily for cleaning. Optional spacers for anterior or posterior seat angle adjustment [Z491] are available.
Adjustable footrests Removable for transfers and cleaning, swing in and out easily. Flip-up footplate is available, and easily adjustable leg length is available without tools. Available in regular length (16 to 20.5) and extended length (18 to 22.5).
Tension-adjustable back support fabric Vinyl-coated fabric for durability, comfort and better infection control provides individualized trunk support for optimal positioning and comfort. Removable for machine washing, and available in 20 back height.
Adjustable pivot posts Provide 3 of vertical seat adjustment and 4 of seat height adjustment without frame / toilet bowl interference
Headrest (small) Headrest size is approximately 10 wide 4 high. Integral skin foam headrest is easy to clean, and the headrest is shaped to cradle the head and can be adjusted to fit looser or tighter. Headrest support can be adjusted infinitely forward and backwards within a 5.5 range, and vertically within a 11.5 range. Headrest angle can be adjusted for comfort. Headrest (small and mounting fixtures) are included with Raz-AT (Z300) and Raz-AT600 (Z360) chairs and optional on all other Raz models.
Commode pan Injection-moulded pan is designed for function, and includes a lid for splash and odour control. Wide handle angled at 45 degrees provides better ergonomics, and the sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry. Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place. Fits in a standard autoclave and Arjo Tornado Washer.
Tilt assist pedal Helps attendant initiate tilt for heavier users or users with a forward weight distribution and enables attendant to use additional strength from legs to tilt larger/heavier users. Solid stainless steel construction fits directly into chair frame, and comes with anti-slip tread on pedal.
