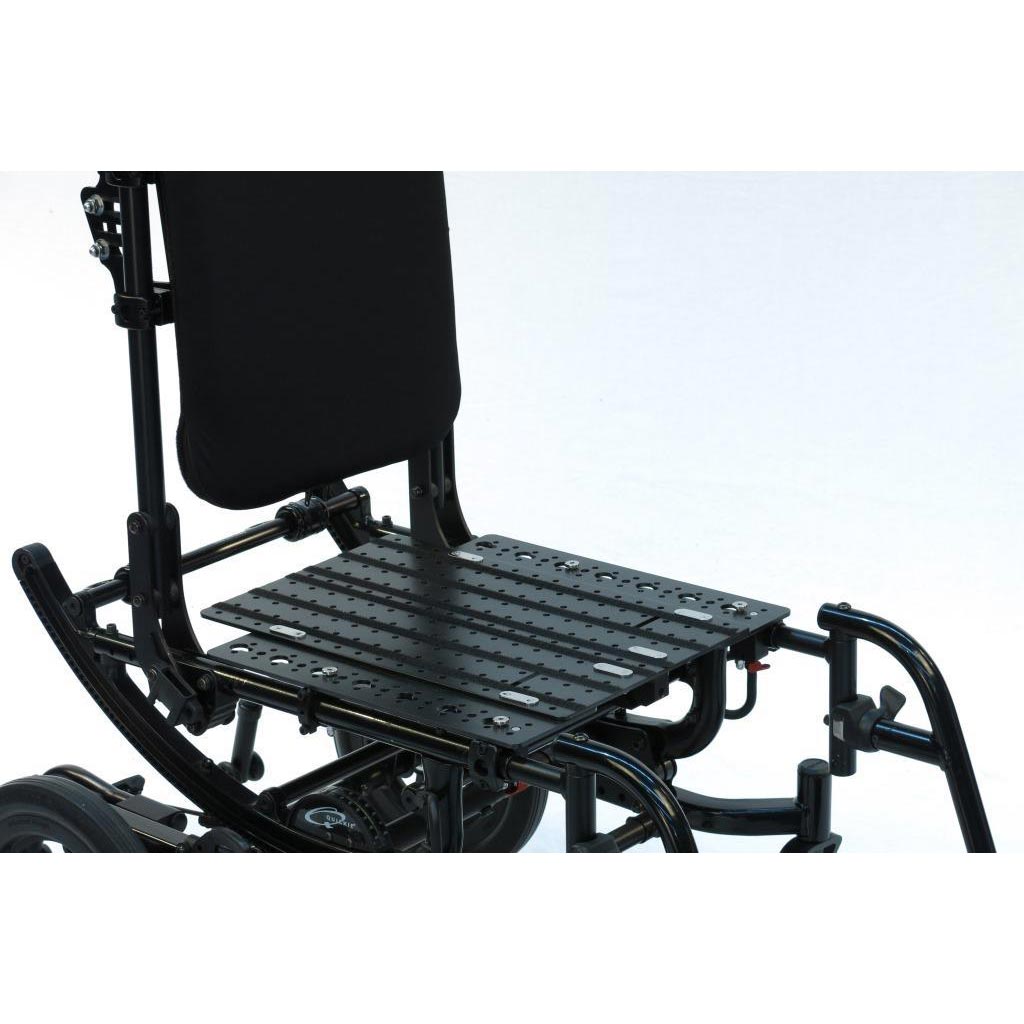

Spex Grid-Base Seat Pan

Foundation for positioning requirements

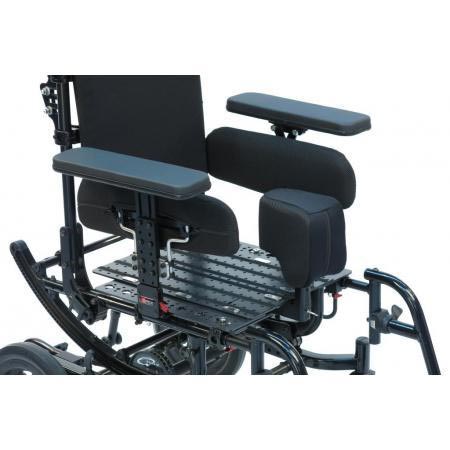

• Grid of hole positions for ease of mounting auxiliary postural supports such as thigh, arm and medial knee/thigh supports. Side and front slots are cut into the design for easy placement of positioning belts and accessories. Can be fitted to a range of different wheelchair models and brands due to the side indents which accommodates variants of cane designs. Rear cut out sections fit around the back support canes.

User and caregiver friendly design

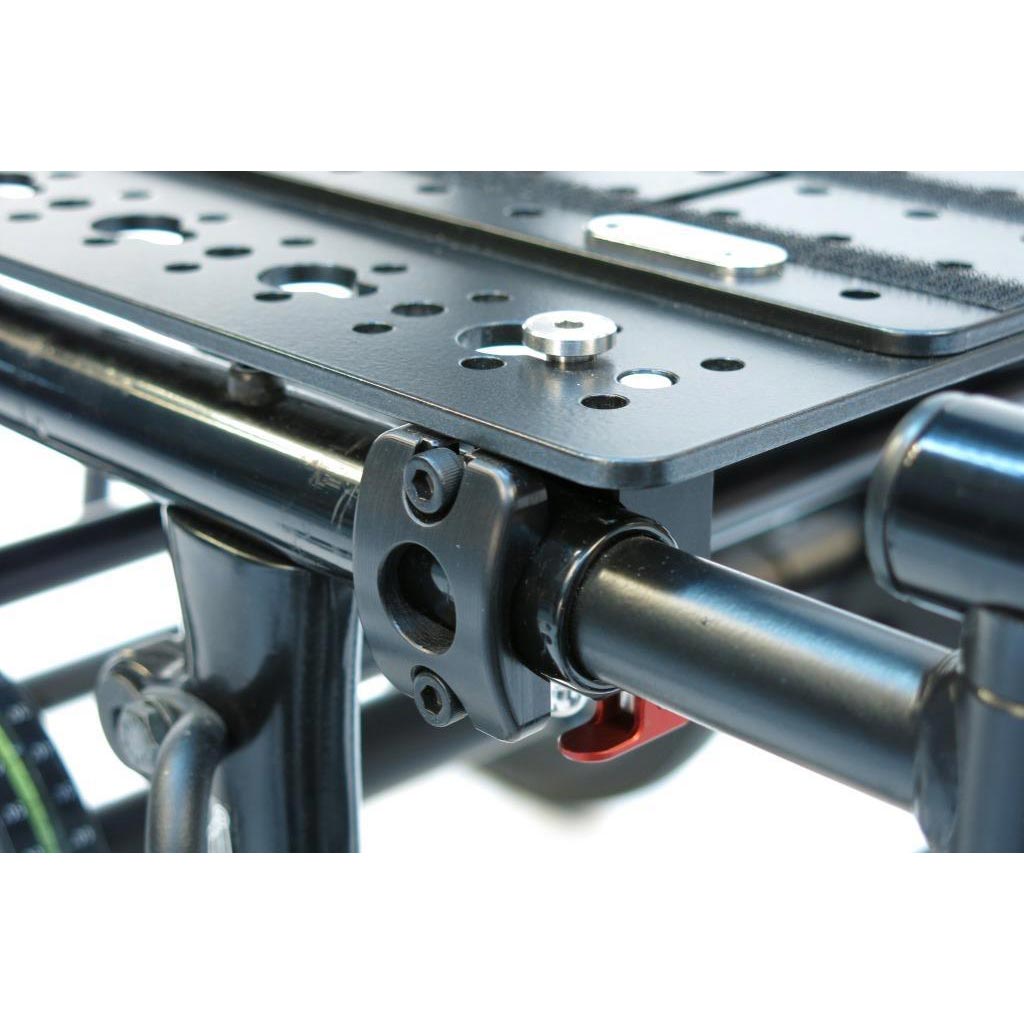

• Fast two switch installation and removal: the newly designed Quick-Release hardware features two switches you flick up to remove and self-engage when installing. Suitable for those with limited hand function as switches can be bumped to release. Leave your cushion installed: with easier removal of the seat base, you no longer have to remove the cushion and can leave it in place.

Innovative hardware with versatile design

• Quick-Release for full functionality or Fixed Mount for lower cost and lightweight option, capable of fitting on wheelchair canes 19-30mm tube diameter. Quick release hardware self-locking pins: the quick release hardware features self-locking pins making it easy to lock in and release simply slide in and clip down! Easy to clean and maintain: keep your seat base looking clean with the quick release hardware having sockets that feature a hygienic self-draining design so dirt does not get trapped.

Width adjustment for growth

• Built in width adjustment for future growth, allowing it to be fitted to different size wheelchairs. See below Seat Pan Adjustability table.

Clinically correct positioning and stability

• Provides stability and a solid foundation for the cushion to ensure no sag is developed over time, thus, preventing internal rotation of the hips. Allows for even pressure distribution throughout the entire cushion, avoiding pressure points in any specific area. Ensures stability for build-up of positioning cushions.
